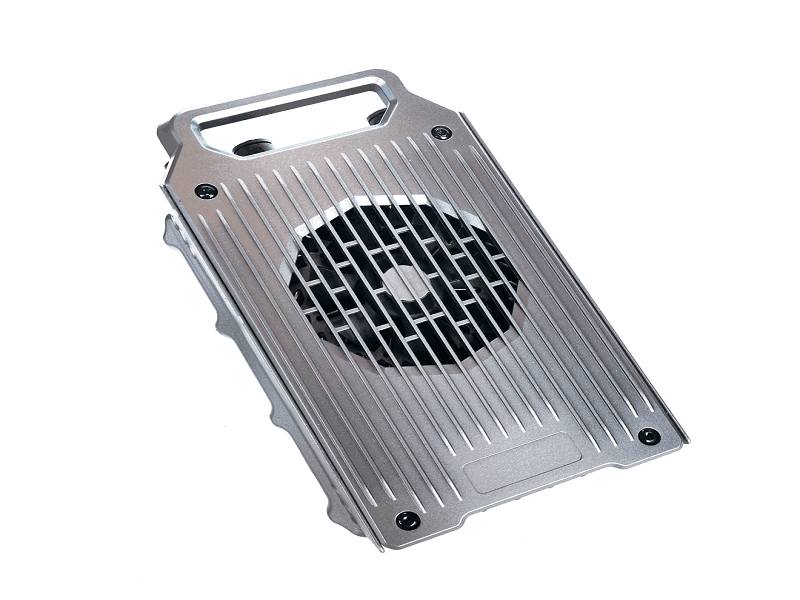

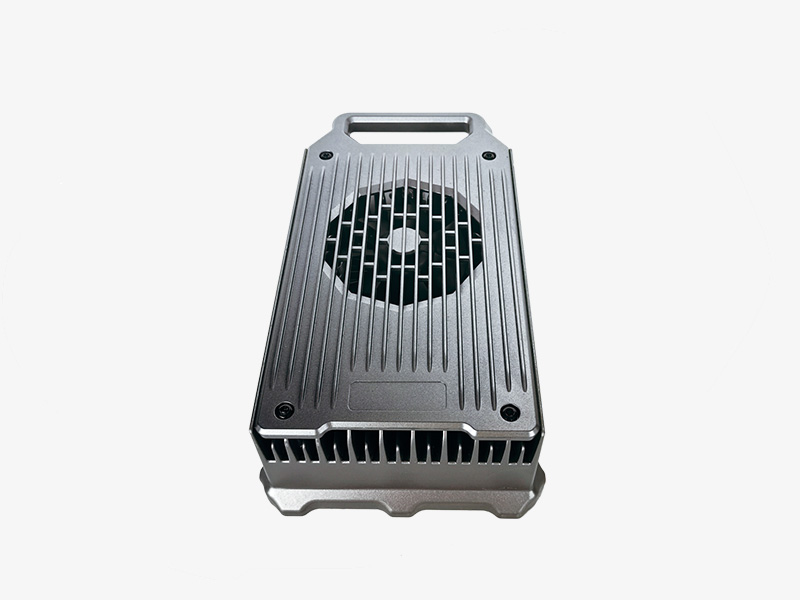

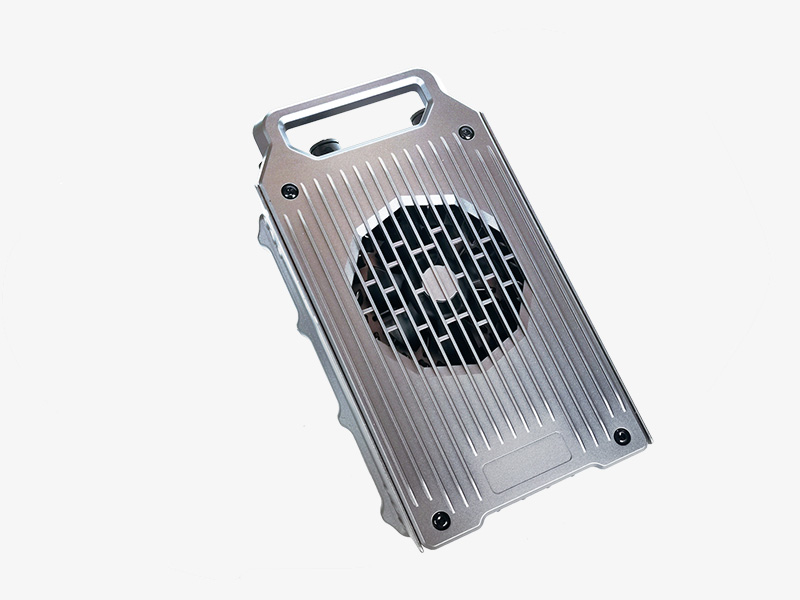

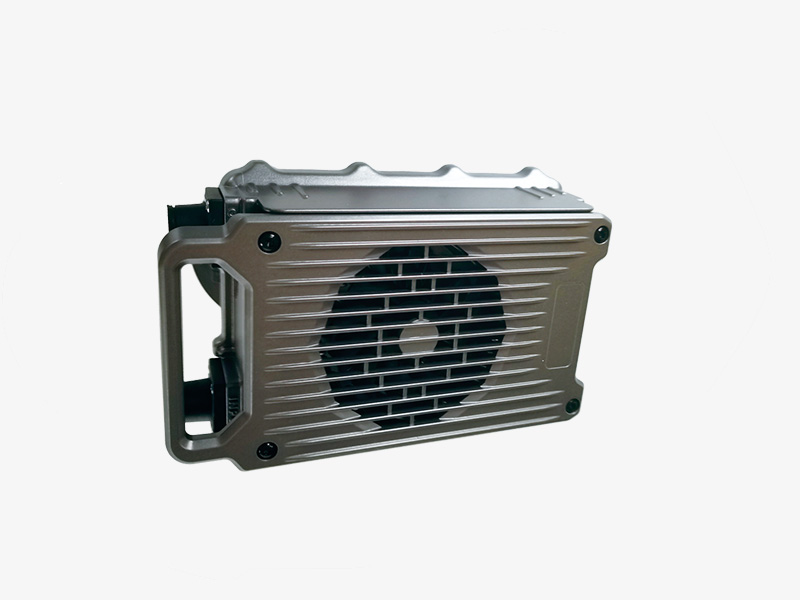

SMCN08 Series（800W）
AC input voltage range:AC90~264V;
AC input frequency range:40~70Hz;
With APFC function,power factor:≥0.99;
Soft switching technology,efficiency:≥90%;
Protection level:IP65;
Charger mode:Adjustable dynamic charging curve;
CAN communication function:Optional;
LED light indicator for charging process:Standard;
Operating temperature:-30℃~+65℃;
Storage temperature:-40℃~+95℃;
Noise:≤45dB;

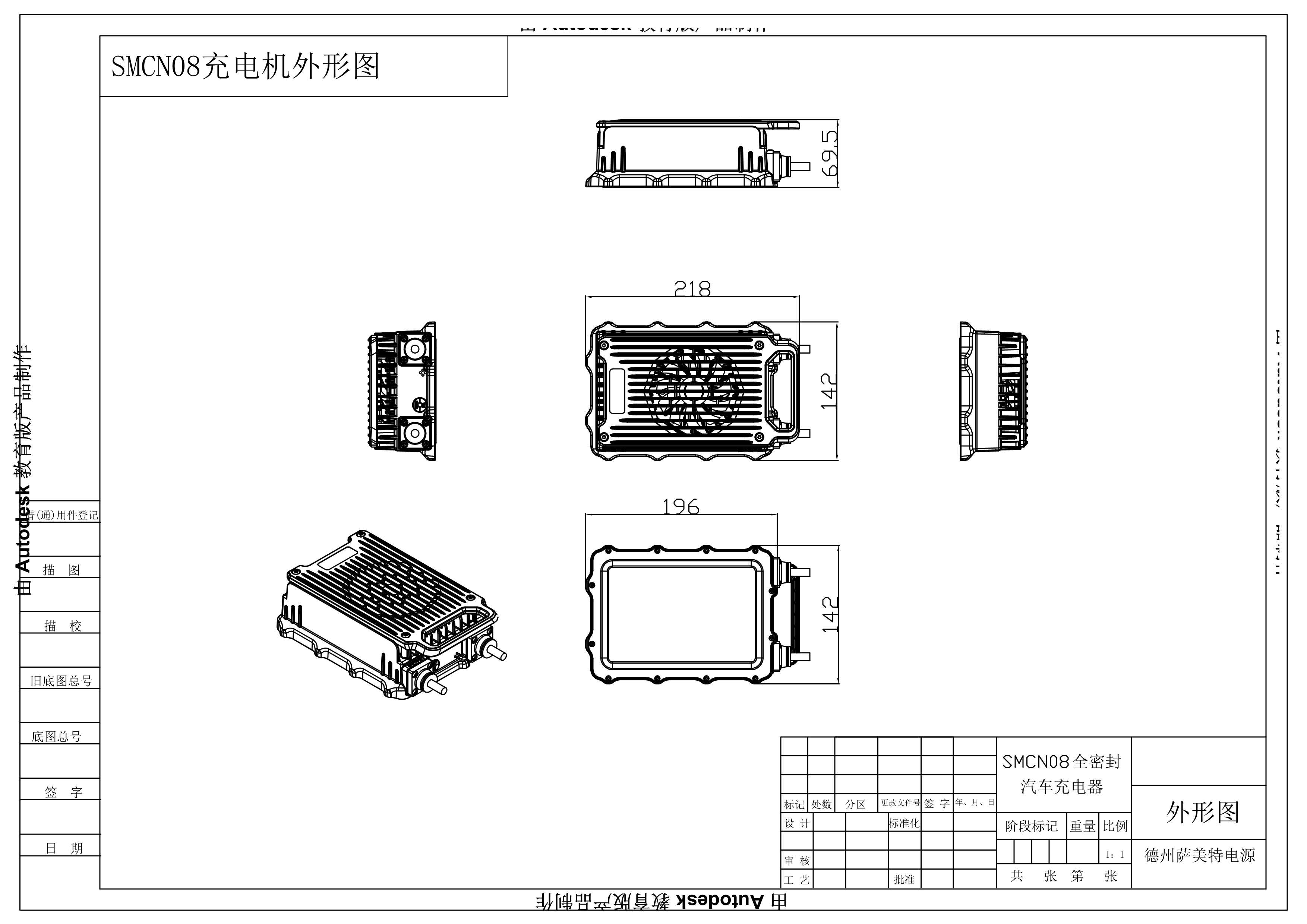

Overall size:218*142*69.5(mm);
Net weight:1.9kg.
Related products
Describe
| Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
| SMCN08-4815A | AC90-264V | 48V | 60V | 15A |
| SMCN08-6012A | AC90-264V | 60V | 75V | 12A |
| SMCN08-7210A | AC90-264V | 72V | 90V | 10A |
| Product pictures | Technical parameters | Protection function | Dimension chart | |
 |
AC input voltage range:AC90~264V; AC input frequency range:40~70Hz; With APFC function,power factor:≥0.99; Soft switching technology,efficiency:≥90%; Protection level:IP65; Charger mode:Adjustable dynamic charging curve; CAN communication function:Optional; LED light indicator for charging process:Standard; Operating temperature:-30℃~+65℃; Storage temperature:-40℃~+95℃; Noise:≤45dB; Overall size:218*142*69.5(mm); Net weight:1.9kg. |
1、Overheat protection When the internal temperature of the charger exceeds 80℃,the charging current will reduce automatically.When it exceeds 85℃,the charger shutdown for protction.When the temperature drop,the charger automatically resumes to charger. 2、Short circuit protection When the output is short circuited, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging. 3、Battery reverse connection protection When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging without damage the charger. 4、Input low-voltage& over-voltage protection If the input voltage is lower than 90V or higher than 264V,the charger will shut down protectively and automatically resume working with the voltage is normal again. 5、Full automatic shut down Automatically shut down after full charge. |
 |
|
